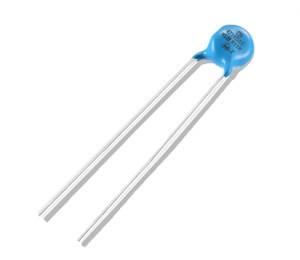

MOV 5D 系列
時間：2019-06-27
浏覽量：746}
産品詳情
産品介紹
1 寬壓敏電壓範圍 18V~750V
2 高通流量100~800A
3 标準5D封裝 5mm
4 過電壓快速響應 小于25nS
5 可選擇同一電壓，更高浪湧能量器件
具體規格
5D-1
|
Part Number |
Maximum Voltage |
Varistor Voltage |
Clamping Voltage |
Max Peak Voltage(8/20Us) |
Max Energy |
Rated Power |
Typical Cap |
||
|
AC |
DC |
V1.0mA(V) |
IP (A) |
VC (V) |
I(A) |
10/1000Us (J) |
(w) |
@1KHz Pf |
|
|
180KD05 |
11 |
14 |
18(15-21.6) |
1 |
40 |
100 |
0.4 |
0.01 |
1400 |
|
180KD05J |
250 |
0.6 |
|||||||
|
220KD05 |
14 |
18 |
22(19.5-26) |
1 |
48 |
100 |
0.5 |
0.01 |
1150 |
|
220KD05J |
250 |
0.7 |
|||||||
|
270KD05 |
17 |
22 |
27(24-31) |
1 |
60 |
100 |
0.6 |
0.01 |
930 |
|
270KD05J |
250 |
0.9 |
|||||||
|
330KD05 |
20 |
26 |
33(29.5-36.5) |
1 |
73 |
100 |
0.8 |
0.01 |
760 |
|
330KD05J |
250 |
1.1 |
|||||||
|
390KD05 |
25 |
31 |
39(35-43) |
1 |
80 |
100 |
0.9 |
0.01 |
640 |
|
390KD05J |
250 |
1.2 |
|||||||
|
470KD05 |
30 |
38 |
47(42-52) |
1 |
104 |
100 |
1.1 |
0.01 |
530 |
|
470KD05J |
250 |
1.5 |
|||||||
|
560KD05 |
35 |
45 |
56(50-62) |
1 |
123 |
100 |
1.3 |
0.01 |
450 |
|
560KD05J |
250 |
1.8 |
|||||||
|
680KD05 |
40 |
56 |
68(61-75) |
1 |
145 |
100 |
1.6 |
0.01 |
370 |
|
680KD05J |
250 |
2.2 |
|||||||
|
820KD05 |
50 |
65 |
82(74-90) |
5 |
150 |
400 |
2.5 |
0.1 |
300 |
|
820KD05J |
800 |
4.0 |
|||||||
5D-2
|
Part Number |
Maximum Voltage |
Varistor Voltage |
Clamping Voltage |
Max Peak Voltage(8/20Us) |
Max Energy |
Rated Power |
Typical Cap |
||
|
AC |
DC |
V1.0mA(V) |
IP (A) |
VC (V) |
I(A) |
10/1000Us (J) |
(w) |
@1KHz Pf |
|
|
101KD05 |
60 |
85 |
100(90-110) |
5 |
177 |
400 |
3.0 |
0.1 |
250 |
|
101KD05J |
800 |
4.1 |
|||||||
|
121KD05 |
75 |
100 |
120(108-132) |
5 |
210 |
400 |
4.0 |
0.1 |
210 |
|
121KD05J |
800 |
4.9 |
|||||||
|
151KD05 |
95 |
125 |
150(135-165) |
5 |
260 |
400 |
4.1 |
0.1 |
165 |
|
151KD05J |
800 |
6.5 |
|||||||
|
181KD05 |
115 |
150 |
180(162-198) |
5 |
320 |
400 |
4.9 |
0.1 |
140 |
|
181KD05J |
800 |
7.5 |
|||||||
|
201KD05 |
130 |
170 |
200(180-220) |
5 |
355 |
400 |
6.5 |
0.1 |
125 |
|
201KD05J |
800 |
8.5 |
|||||||
|
221KD05 |
140 |
180 |
220(198-242) |
5 |
380 |
400 |
7.5 |
0.1 |
110 |
|
221KD05J |
800 |
9.0 |
|||||||
|
241KD05 |
150 |
200 |
240(216-264) |
5 |
415 |
400 |
8.0 |
0.1 |
100 |
|
241KD05J |
800 |
10.5 |
|||||||
|
271KD05 |
175 |
225 |
270(243-297) |
5 |
475 |
400 |
8.5 |
0.1 |
95 |
|
271KD05J |
800 |
11 |
|||||||
|
301KD05 |
190 |
250 |
300(270-330) |
5 |
520 |
400 |
9.0 |
0.1 |
85 |
|
301KD05J |
800 |
12 |
|||||||
5D-3
|
Part Number |
Maximum Voltage |
Varistor Voltage |
Clamping Voltage |
Max Peak Voltage(8/20Us) |
Max Energy |
Rated Power |
Typical Cap |
||
|
AC |
DC |
V1.0mA(V) |
IP (A) |
VC (V) |
I(A) |
10/1000Us (J) |
(w) |
@1KHz Pf |
|
|
331KD05 |
210 |
275 |
330(297-363) |
5 |
570 |
400 |
9.5 |
0.1 |
75 |
|
331KD05J |
800 |
13 |
|||||||
|
361KD05 |
230 |
300 |
360(324-396) |
5 |
620 |
400 |
10 |
0.1 |
70 |
|
361KD05J |
800 |
16 |
|||||||
|
391KD05 |
250 |
320 |
390(351-429) |
5 |
675 |
400 |
12 |
0.1 |
65 |
|
391KD05J |
800 |
17 |
|||||||
|
431KD05 |
275 |
350 |
430(387-473) |
5 |
745 |
400 |
13 |
0.1 |
60 |
|
431KD05J |
800 |
20 |
|||||||
|
471KD05 |
300 |
385 |
470(423-517) |
5 |
810 |
400 |
15 |
0.1 |
55 |
|
471KD05J |
800 |
21 |
|||||||
|
511KD05 |
320 |
415 |
510(459-561) |
5 |
845 |
400 |
16 |
0.1 |
50 |
|
511KD05J |
800 |
22.5 |
|||||||
|
561KD05 |
350 |
460 |
560(504-616) |
5 |
920 |
400 |
16 |
0.1 |
45 |
|
561KD05J |
800 |
24 |
|||||||
|
621KD05 |
385 |
505 |
620(558-682) |
5 |
1025 |
400 |
21.0 |
0.1 |
40 |
|
621KD05J |
800 |
25.0 |
|||||||
|
681KD05 |
420 |
560 |
680(612-748) |
5 |
1120 |
400 |
21.0 |
0.1 |
35 |
|
681KD05J |
800 |
29.0 |
|||||||
|
751KD05 |
460 |
615 |
750(675-825) |
5 |
1240 |
400 |
22.4 |
0.1 |
30 |
|
751KD05J |
800 |
32.0 |
|||||||
