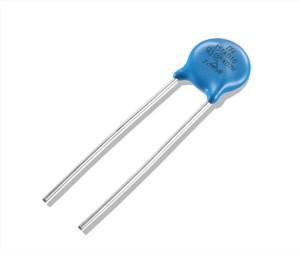

MOV 10D系列
時間：2019-06-27
浏覽量：854}
産品詳情
産品介紹
1 寬壓敏電壓範圍 18V~1100V
2 高通流量500~3500A
3 标準10D封裝 10mm
4 過電壓快速響應 小于25nS
5 可選擇同一電壓，更高浪湧能量器件
具體規格
10D-1
|
Part Number |
Maximum Voltage |
Varistor Voltage |
Clamping Voltage |
Max Peak Voltage(8/20Us) |
Max Energy |
Rated Power |
Typical Cap |
||
|
AC |
DC |
V1.0mA(V) |
IP (A) |
VC (V) |
I(A) |
10/1000Us (J) |
(w) |
@1KHz Pf |
|
|
180KD10 |
11 |
14 |
18(15-21.6) |
5 |
36 |
500 |
2.1 |
0.05 |
5600 |
|
180KD10J |
1000 |
3.0 |
|||||||
|
220KD10 |
14 |
18 |
22(19.5-26) |
5 |
43 |
500 |
2.5 |
0.05 |
4500 |
|
220KD10J |
1000 |
5.0 |
|||||||
|
270KD10 |
17 |
22 |
27(24-31) |
5 |
53 |
500 |
3.0 |
0.05 |
3700 |
|
270KD10J |
1000 |
6.0 |
|||||||
|
330KD10 |
20 |
26 |
33(29.5-36.5) |
5 |
65 |
500 |
4.0 |
0.05 |
3000 |
|
330KD10J |
1000 |
7.0 |
|||||||
|
390KD10 |
25 |
31 |
39(35-43) |
5 |
77 |
500 |
4.6 |
0.05 |
2400 |
|
390KD10J |
1000 |
9.0 |
|||||||
|
470KD10 |
30 |
38 |
47(42-52) |
5 |
93 |
500 |
5.5 |
0.05 |
2100 |
|
470KD10J |
1000 |
11.0 |
|||||||
|
560KD10 |
35 |
45 |
56(50-62) |
5 |
110 |
500 |
7.0 |
0.05 |
1800 |
|
560KD10J |
1000 |
13.0 |
|||||||
|
680KD10 |
40 |
56 |
68(61-75) |
5 |
135 |
500 |
8.2 |
0.05 |
1500 |
|
680KD10J |
1000 |
15.0 |
|||||||
|
820KD10 |
50 |
65 |
82(74-90) |
25 |
135 |
2500 |
12.0 |
0.4 |
1200 |
|
820KD10J |
3500 |
17.0 |
|||||||
10D-2
|
Part Number |
Maximum Voltage |
Varistor Voltage |
Clamping Voltage |
Max Peak Voltage(8/20Us) |
Max Energy |
Rated Power |
Typical Cap |
||
|
AC |
DC |
V1.0mA(V) |
IP (A) |
VC (V) |
I(A) |
10/1000Us (J) |
(w) |
@1KHz Pf |
|
|
101KD10 |
60 |
85 |
100(90-110) |
25 |
165 |
2500 |
15 |
0.4 |
1000 |
|
101KD10J |
3500 |
18 |
|||||||
|
121KD10 |
75 |
100 |
120(108-132) |
25 |
200 |
2500 |
18 |
0.4 |
830 |
|
121KD10J |
3500 |
21 |
|||||||
|
151KD10 |
95 |
125 |
150(135-165) |
25 |
250 |
2500 |
22 |
0.4 |
670 |
|
151KD10J |
3500 |
25 |
|||||||
|
181KD10 |
115 |
150 |
180(162-198) |
25 |
300 |
2500 |
27 |
0.4 |
560 |
|
181KD10J |
3500 |
30 |
|||||||
|
201KD10 |
130 |
170 |
200(180-220) |
25 |
340 |
2500 |
30 |
0.4 |
500 |
|
201KD10J |
3500 |
35 |
|||||||
|
221KD10 |
140 |
180 |
220(198-242) |
25 |
360 |
2500 |
32 |
0.4 |
450 |
|
221KD10J |
3500 |
39 |
|||||||
|
241KD10 |
150 |
200 |
240(216-264) |
25 |
395 |
2500 |
35 |
0.4 |
420 |
|
241KD10J |
3500 |
42 |
|||||||
|
271KD10 |
175 |
225 |
270(243-297) |
25 |
455 |
2500 |
40 |
0.4 |
370 |
|
271KD10J |
3500 |
49 |
|||||||
|
301KD10 |
190 |
250 |
300(270-330) |
25 |
500 |
2500 |
40 |
0.4 |
330 |
|
301KD10J |
3500 |
54 |
|||||||
10D-3
|
Part Number |
Maximum Voltage |
Varistor Voltage |
Clamping Voltage |
Max Peak Voltage(8/20Us) |
Max Energy |
Rated Power |
Typical Cap |
||
|
AC |
DC |
V1.0mA(V) |
IP (A) |
VC (V) |
I(A) |
10/1000Us (J) |
(w) |
@1KHz Pf |
|
|
331KD10 |
210 |
275 |
330(297-363) |
25 |
550 |
2500 |
48 |
0.4 |
300 |
|
331KD10J |
3500 |
58 |
|||||||
|
361KD10 |
230 |
300 |
360(324-396) |
25 |
595 |
2500 |
52 |
0.4 |
280 |
|
361KD10J |
3500 |
65 |
|||||||
|
391KD10 |
250 |
320 |
390(351-429) |
25 |
650 |
2500 |
60 |
0.4 |
260 |
|
391KD10J |
3500 |
70 |
|||||||
|
431KD10 |
275 |
350 |
430(387-473) |
25 |
710 |
2500 |
65 |
0.4 |
230 |
|
431KD10J |
3500 |
80 |
|||||||
|
471KD10 |
300 |
385 |
470(423-517) |
25 |
775 |
2500 |
70 |
0.4 |
210 |
|
471KD10J |
3500 |
85 |
|||||||
|
511KD10 |
320 |
415 |
510(459-561) |
25 |
845 |
2500 |
70 |
0.4 |
200 |
|
511KD10J |
3500 |
90 |
|||||||
|
561KD10 |
350 |
460 |
560(504-616) |
25 |
925 |
2500 |
70 |
0.4 |
180 |
|
561KD10J |
3500 |
92 |
|||||||
|
621KD10 |
385 |
505 |
620(558-682) |
25 |
1025 |
2500 |
70 |
0.4 |
160 |
|
621KD10J |
3500 |
95 |
|||||||
|
681KD10 |
420 |
560 |
680(612-748) |
25 |
1120 |
2500 |
75 |
0.4 |
150 |
|
681KD10J |
3500 |
98 |
|||||||
10D-4
|
Part Number |
Maximum Voltage |
Varistor Voltage |
Clamping Voltage |
Max Peak Voltage(8/20Us) |
Max Energy |
Rated Power |
Typical Cap |
||
|
AC |
DC |
V1.0mA(V) |
IP (A) |
VC (V) |
I(A) |
10/1000Us (J) |
(w) |
@1KHz Pf |
|
|
751KD10 |
460 |
615 |
750(675-825) |
25 |
1240 |
2500 |
77 |
0.4 |
130 |
|
751KD10J |
3500 |
100 |
|||||||
|
781KD107 |
485 |
640 |
780(702-858) |
25 |
1290 |
2500 |
80 |
0.4 |
130 |
|
781KD10J |
3500 |
105 |
|||||||
|
821KD10 |
510 |
670 |
820(738-902) |
25 |
1355 |
2500 |
85 |
0.4 |
120 |
|
821KD10J |
3500 |
110 |
|||||||
|
911KD10 |
550 |
745 |
910(819-1001) |
25 |
1500 |
2500 |
93 |
0.4 |
110 |
|
911KD10J |
3500 |
130 |
|||||||
|
102KD10 |
625 |
825 |
1000(900-1100) |
25 |
1650 |
2500 |
102 |
0.4 |
100 |
|
102KD10J |
3500 |
140 |
|||||||
|
112KD10 |
680 |
895 |
1100(990-1210) |
25 |
1815 |
2500 |
115 |
0.4 |
90 |
|
112KD10J |
3500 |
155 |
|||||||
