P6KE系列
時間：2019-06-28
浏覽量：734}
産品詳情
産品特征

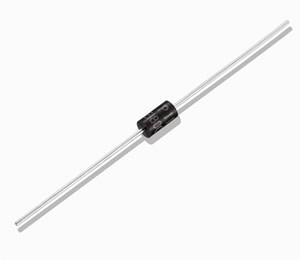

1 塑封 DO-15 玻璃鈍化結
2 10/1000uS 600W
3 超低殘壓
4 快速響應 ：0V 到擊穿，動作時間小于1uS
5 截止電壓大于12V，漏電流小于1uA
6 支持高溫焊接
具體參數
P6KE-1
|
Part Number |
Reverse Stand-off Voltage |
Breakdown Voltage Min@It |
Breakdown Voltage Max@It |
Test Current |
Max Clamping Voltage@Ipp |
Peak Pulse Current |
Reverse Leakage @Vrwm |
|
|
Uni-polay |
Bi-polay |
Vrwm(V) |
Vbr Min(V) |
Vbr Max(V) |
It(mA) |
Vc (V) |
Ipp(A) |
Ir(μA) |
|
P6KE6.8A |
P6KE6.8CA |
5.80 |
6.45 |
7.14 |
10 |
10.5 |
58.1 |
1000 |
|
P6KE7.5A |
P6KE7.5CA |
6.40 |
7.13 |
7.88 |
10 |
11.3 |
54.0 |
500 |
|
P6KE8.2A |
P6KE8.2CA |
7.02 |
7.79 |
8.61 |
10 |
12.1 |
50.4 |
200 |
|
P6KE9.1A |
P6KE9.1CA |
7.78 |
8.65 |
9.55 |
1 |
13.4 |
45.5 |
50 |
|
P6KE10A |
P6KE10CA |
8.55 |
9.50 |
10.50 |
1 |
14.5 |
42.1 |
10 |
|
P6KE11A |
P6KE11CA |
9.40 |
10.50 |
11.60 |
1 |
15.6 |
39.1 |
5 |
|
P6KE12A |
P6KE12CA |
10.20 |
11.40 |
12.60 |
1 |
16.7 |
36.5 |
5 |
|
P6KE13A |
P6KE13CA |
11.10 |
12.40 |
13.70 |
1 |
18.2 |
33.5 |
1 |
|
P6KE15A |
P6KE15CA |
12.80 |
14.30 |
15.80 |
1 |
21.2 |
28.8 |
1 |
|
P6KE16A |
P6KE16CA |
13.60 |
15.20 |
16.80 |
1 |
22.5 |
27.1 |
1 |
|
P6KE18A |
P6KE18CA |
15.30 |
17.10 |
18.90 |
1 |
25.2 |
24.2 |
1 |
|
P6KE20A |
P6KE20CA |
17.10 |
19.00 |
21.00 |
1 |
27.7 |
22.0 |
1 |
|
P6KE22A |
P6KE22CA |
18.80 |
20.90 |
23.10 |
1 |
30.6 |
19.9 |
1 |
|
P6KE24A |
P6KE24CA |
20.50 |
22.80 |
25.20 |
1 |
33.2 |
18.4 |
1 |
|
P6KE27A |
P6KE27CA |
23.10 |
25.70 |
28.40 |
1 |
37.5 |
16.3 |
1 |
|
P6KE30A |
P6KE30CA |
25.60 |
28.50 |
31.50 |
1 |
41.4 |
14.7 |
1 |
|
P6KE33A |
P6KE33CA |
28.20 |
31.40 |
34.70 |
1 |
45.7 |
13.3 |
1 |
|
P6KE36A |
P6KE36CA |
30.80 |
34.20 |
37.80 |
1 |
49.9 |
12.2 |
1 |
P6KE-2
|
Part Number |
Reverse Stand-off Voltage |
Breakdown Voltage Min@It |
Breakdown Voltage Max@It |
Test Current |
Max Clamping Voltage@Ipp |
Peak Pulse Current |
Reverse Leakage @Vrwm |
|
|
Uni-polay |
Bi-polay |
Vrwm(V) |
Vbr Min(V) |
Vbr Max(V) |
It(mA) |
Vc (V) |
Ipp(A) |
Ir(μA) |
|
P6KE39A |
P6KE39CA |
33.30 |
37.10 |
41.00 |
1 |
53.9 |
11.3 |
1 |
|
P6KE43A |
P6KE43CA |
36.80 |
40.90 |
45.20 |
1 |
59.3 |
10.3 |
1 |
|
P6KE47A |
P6KE47CA |
40.20 |
44.70 |
49.40 |
1 |
64.8 |
9.4 |
1 |
|
P6KE51A |
P6KE51CA |
43.60 |
48.50 |
53.60 |
1 |
70.1 |
8.7 |
1 |
|
P6KE56A |
P6KE56CA |
47.80 |
53.20 |
58.80 |
1 |
77.0 |
7.9 |
1 |
|
P6KE62A |
P6KE62CA |
53.00 |
58.90 |
65.10 |
1 |
85.0 |
7.2 |
1 |
|
P6KE68A |
P6KE68CA |
58.10 |
64.60 |
71.40 |
1 |
92.0 |
6.6 |
1 |
|
P6KE75A |
P6KE75CA |
64.10 |
71.30 |
78.80 |
1 |
103.0 |
5.9 |
1 |
|
P6KE82A |
P6KE82CA |
70.10 |
77.90 |
86.10 |
1 |
113.0 |
5.4 |
1 |
|
P6KE91A |
P6KE91CA |
77.80 |
86.50 |
95.50 |
1 |
125.0 |
4.9 |
1 |
|
P6KE100A |
P6KE100CA |
85.50 |
95.00 |
105.00 |
1 |
137.0 |
4.5 |
1 |
|
P6KE110A |
P6KE110CA |
94.00 |
105.00 |
116.00 |
1 |
152.0 |
4.0 |
1 |
|
P6KE120A |
P6KE120CA |
102.00 |
114.00 |
126.00 |
1 |
165.0 |
3.7 |
1 |
|
P6KE130A |
P6KE130CA |
111.00 |
124.00 |
137.00 |
1 |
179.0 |
3.4 |
1 |
|
P6KE150A |
P6KE150CA |
128.00 |
143.00 |
158.00 |
1 |
207.0 |
2.9 |
1 |
|
P6KE160A |
P6KE160CA |
136.00 |
152.00 |
168.00 |
1 |
219.0 |
2.8 |
1 |
|
P6KE170A |
P6KE170CA |
145.00 |
162.00 |
179.00 |
1 |
234.0 |
2.6 |
1 |
|
P6KE180A |
P6KE180CA |
154.00 |
171.00 |
189.00 |
1 |
246.0 |
2.5 |
1 |
P6KE-3
|
Part Number |
Reverse Stand-off Voltage |
Breakdown Voltage Min@It |
Breakdown Voltage Max@It |
Test Current |
Max Clamping Voltage@Ipp |
Peak Pulse Current |
Reverse Leakage @Vrwm |
|
|
Uni-polay |
Bi-polay |
Vrwm(V) |
Vbr Min(V) |
Vbr Max(V) |
It(mA) |
Vc (V) |
Ipp(A) |
Ir(μA) |
|
P6KE200A |
P6KE200CA |
171.00 |
190.00 |
210.00 |
1 |
274.0 |
2.2 |
1 |
|
P6KE220A |
P6KE220CA |
185.00 |
209.00 |
231.00 |
1 |
328.0 |
1.9 |
1 |
|
P6KE250A |
P6KE250CA |
214.00 |
237.00 |
263.00 |
1 |
344.0 |
1.8 |
1 |
|
P6KE300A |
P6KE300CA |
256.00 |
285.00 |
315.00 |
1 |
414.0 |
1.5 |
1 |
|
P6KE350A |
P6KE350CA |
300.00 |
332.00 |
368.00 |
1 |
482.0 |
1.3 |
1 |
|
P6KE400A |
P6KE400CA |
342.00 |
380.00 |
420.00 |
1 |
548.0 |
1.1 |
1 |
|
P6KE440A |
P6KE440CA |
376.00 |
418.00 |
462.00 |
1 |
602.0 |
1.04 |
1 |
|
P6KE480A |
P6KE480CA |
408.00 |
456.00 |
504.00 |
1 |
658.0 |
0.9 |
1 |
|
P6KE510A |
P6KE510CA |
434.00 |
485.00 |
535.00 |
1 |
698.0 |
0.9 |
1 |
|
P6KE530A |
P6KE530CA |
450.00 |
503.50 |
556.50 |
1 |
725.0 |
0.8 |
1 |
|
P6KE540A |
P6KE540CA |
459.00 |
513.00 |
567.00 |
1 |
740.0 |
0.8 |
1 |
|
P6KE550A |
P6KE550CA |
467.00 |
522.50 |
577.50 |
1 |
760.0 |
0.8 |
1 |
|
P6KE600A |
P6KE600CA |
512.00 |
570.00 |
630.00 |
1 |
828.0 |
0.75 |
1 |
